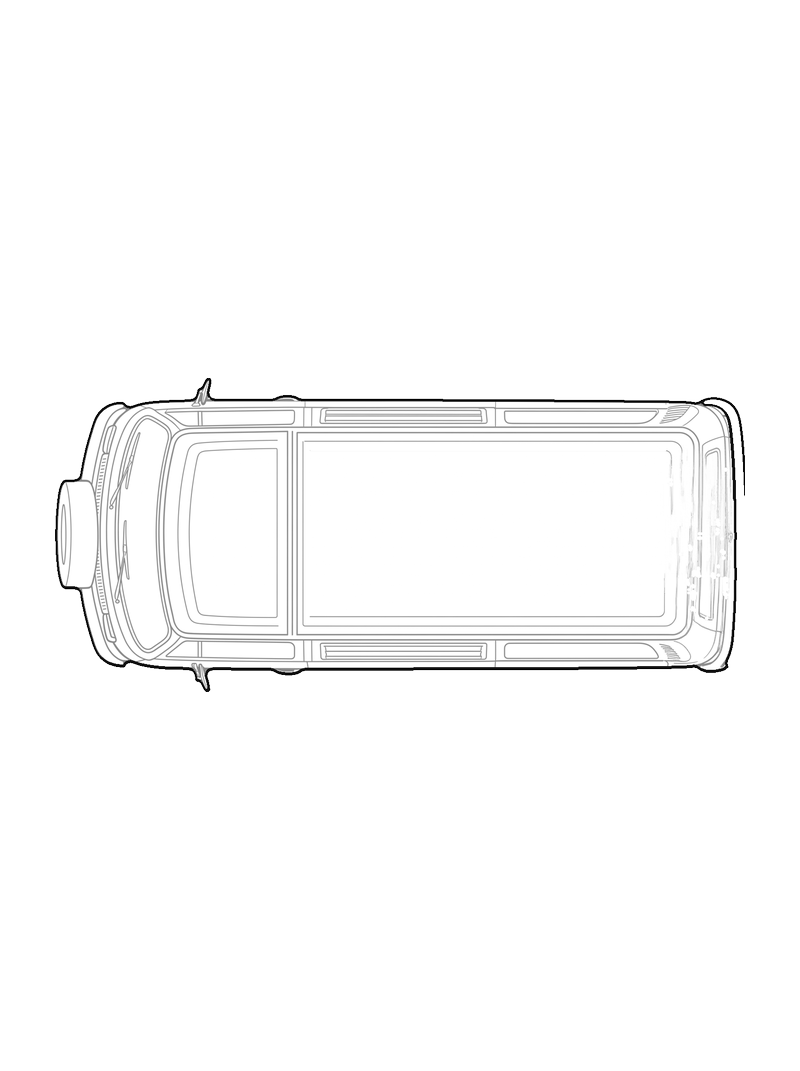

Wolkswagen van - Front, arriba
- Vehicles
- van
- Orthographic view
- Top
By Fernando - pic2CAD19
Free, like every block in the Library.
Found it useful? Support the LibraryDetails
- Category
- Vehicles
- View
- Top
- Formats
- PNG, SVG, DXF
- Group
- van
How to use it in CAD
- DXF in millimetres, ready to insert at true scale.
- Three layers: Outer (outline), Inner (detail) and Fill (solid fill).
- Place it in your plan at 1:50 or 1:100 and rescale from there.
- Insert it as a block: INSERT in AutoCAD, Import in Rhino, ArchiCAD or SketchUp.
Wolkswagen van - Front, arriba is a line-art CAD block in the Vehicles category of the pic2CAD 2D Library, by Fernando - pic2CAD. Formats: DXF for AutoCAD and other CAD software, SVG for vector work and laser cutting, PNG for printing. Tags: van.
See all Vehicles blocksMake your own with your picture
