Orthographic views from a photo

Upload one picture of a person and get four line drawings back: front, side, back and top, ready for plans, sections and elevations.

Try it with your own picture
Before and after: a man leaning on a wall and reading, redrawn standing straight as a front-view CAD line block

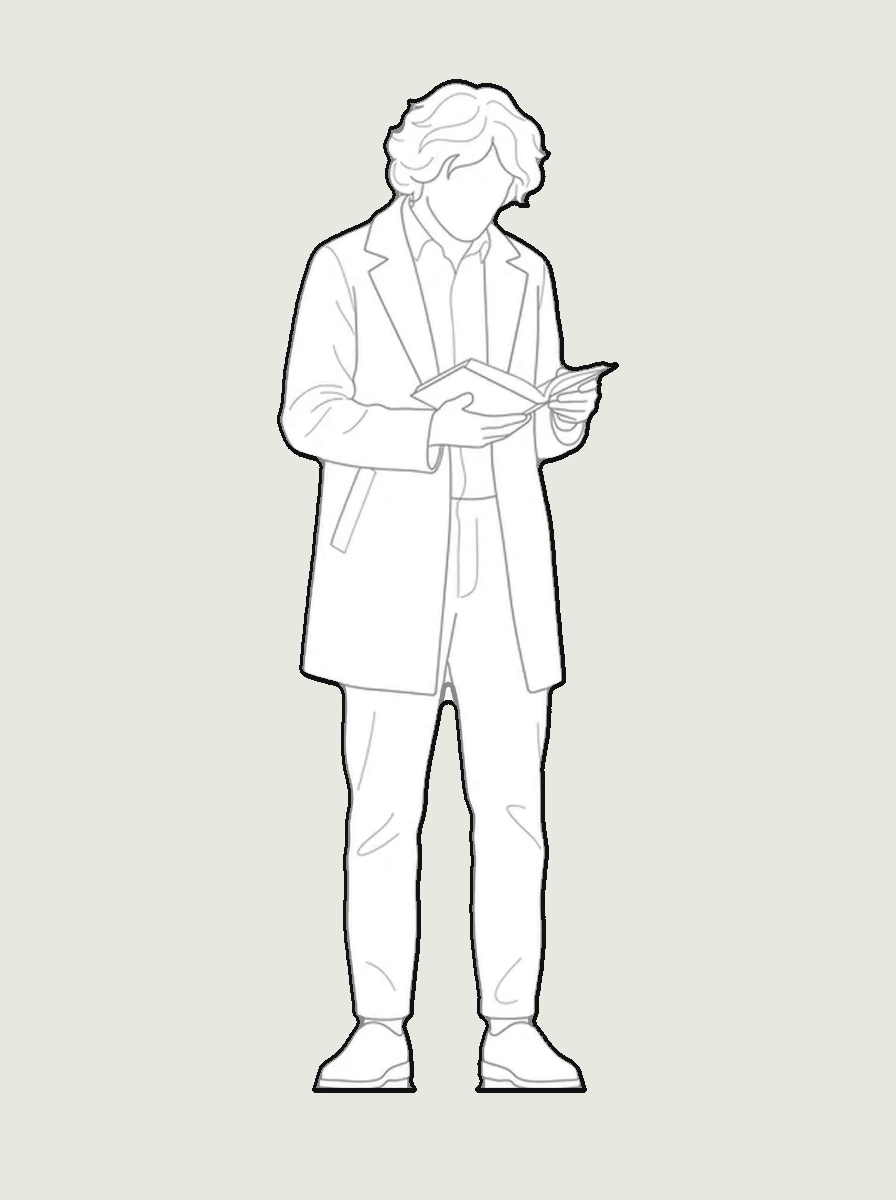

Before and after: a man leaning on a wall and reading, redrawn standing straight as a front-view CAD line block

How it works

01

Upload a picture

Any picture works: one you shoot yourself, a reference from a client, or a sketch you already have.

02

pic2CAD draws the line art

The picture becomes a clean line drawing in about a minute. Generating uses 1 credit, and you get it back if the drawing fails.

03

Download PNG, SVG and DXF

All three formats, every time. Downloading is always free, however many times you need the file.

How pic2CAD helps

A plan view, a section and an elevation each need the same person from a different side. You rarely have a picture from every angle, so you borrow a stranger from a library or redraw the figure by hand.

Pick Orthographic view, click the person and type their real height. pic2CAD draws the front, side, back and top views together, so they match each other in pose and proportions. The side, back and top views are worked out from your picture, because the camera only saw one side: check the proportions against the real person before you rely on them. Each view comes as PNG, SVG and DXF, with the DXF in millimetres, and you can download all four in one ZIP with a combined DXF.

Ideal for

  • Architecture students who need one figure in plan, section and elevation
  • Interior designers drawing the same person into several views of a room
  • Studios building an entourage from their own team, seen from every side
  • Anyone who needs a person from behind or from above and has a single picture

The four views

One picture in, four drawings out. Each view is its own block, so you place the one your drawing needs.

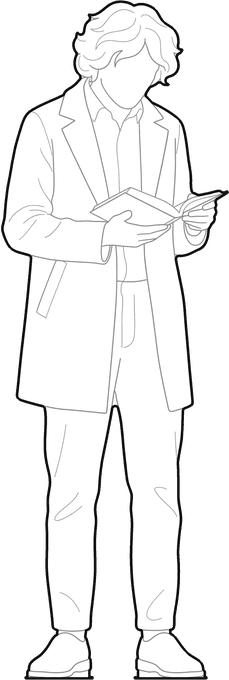

  • Front view of a man reading a book, as a line blockFront

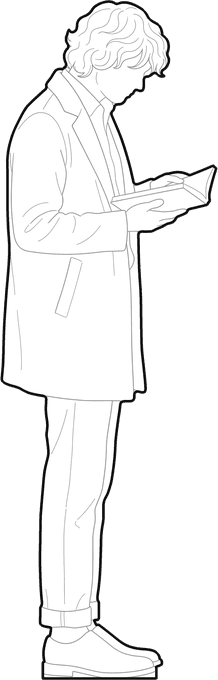

  • Side view of the same man reading, as a line blockSide

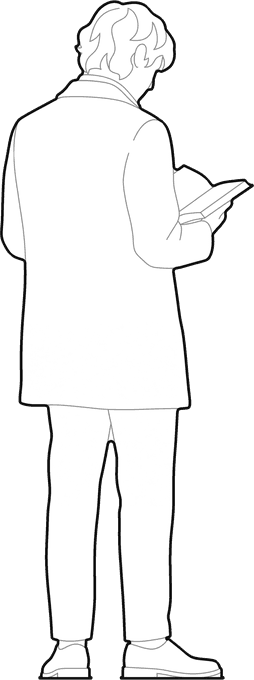

  • Back view of the same man, as a line blockBack

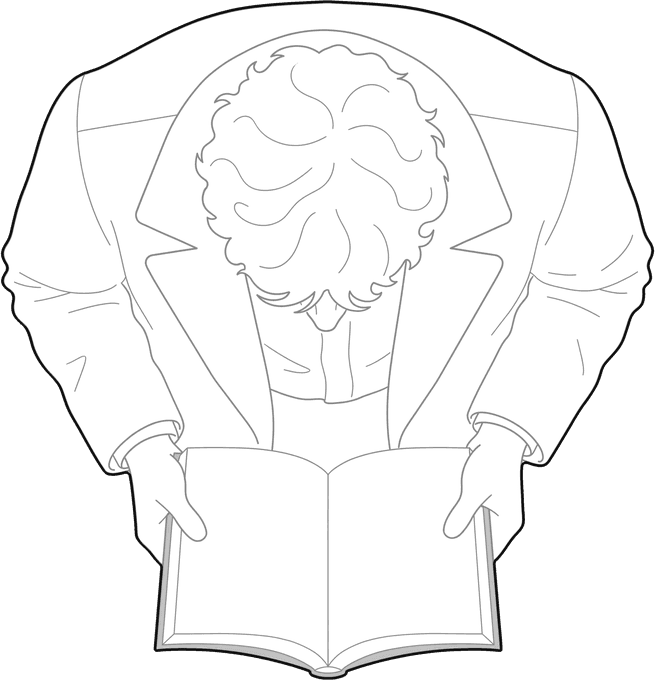

  • Top view of the same man, seen from above, as a line blockTop

Frequently asked questions

Four drawings: front, side, back and top. Each one comes as PNG, SVG and DXF. You can download all four together in one ZIP, which also holds a single DXF with the four views.
They are inferred from the picture, not photographed. Orthographic view is still in beta: feet and unusual angles can come out wrong. Check the proportions against the real person before you use them.
A sharp, full-body picture of one person with the feet in view and nothing covering them. A cropped or half-body picture can't give you a standing figure.
One. The four views come from a single generation, and if none of them can be drawn your credit is not spent.
